HYPROVIDE®
A-SERIES

A modular, containerised, plug-and-play electrolysis solution designed for maximum flexibility.

  • Hydrogen production: 90/180 Nm³ /hour (8.1/16.2 kg /hour)
  • Hydrogen gas purity: 99.998%
  • Cell stack efficiency: 53.0 kWh/kg Hydrogen
  • Outlet pressure: 30 bar(g)
A-Series-containerised-transparent2

The top frame contains a number of components needed for process control of the gas generation, efficient cooling and ventilation, nitrogen inlet and hydrogen outlet.

Within the HyProvide® A-Series, you will find all components necessary for hydrogen generation. Full water treatment and pressurisation, stack power supply for one or two stacks, main controls and data collection point. The 40 ft version is separated into three rooms: two process rooms and one power room, while the 20-ft version is separated into two compartments: one for processing and one for power.
All main interfaces, such as power, water, nitrogen and hydrogen, are accessible from the outside of the container

A-series elecrolyser transparent-1

The heart of the HyProvide® A-Series unit is the process modules. The process modules are integrated into a separate compartment at the end of the container, where they are easy to access and maintain.

With a very efficient stack and BoP integrated, the HyProvide A-container provides very competitive electrolysis at high pressure.

Inside the HyProvide® container units (image: 40 ft), you find all the components necessary for water treatment and pressurisation, power supply, main controls and processing separated into three compartments. The 20 ft container holds two compartments.

In the 40 ft version, two A90 process modules are placed at each end of the container in their dedicated process room.

The power connection box and water inlet are accessible from the outside of the container.

The cooling systems, the ventilation outlet ducting, the hydrogen and oxygen vents, and the roof module are placed on the top frame of the container.

Technical Overview
HyProvide® A-series

Container solution at 100% production
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

Max effect (kW)
450
900
Nominal hydrogen production [Nm3/hour | kg/hour]
90 | 8.1
180 | 16.2
Hydrogen outlet pressure [barg]
30
Hydrogen production gas purity [vol%]
>99.998
Water content in hydrogen - with dryer [ppm]
<5
Oxygen production gas purity - expected [vol%]
>97.5
Cell stack & power supply consumption [kWh/kg H2]
57.0
Input connections
3 ph 400 +/- 10% 50 Hz
Tap water consumption - expected [l/kg hydrogen]
33.4
Communication interface
Ethernet/Modbus/OPC-UA
Control software
HyProManager™
Ambient temperature [°C]
-20 to 30 (0-100%)/ 30 to 35 (0-75%)
Dry weight of container [t]
19.1
31.6
Container solution at 100% production
Max effect (kW)
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

450
900
Nominal hydrogen production [Nm3/hour | kg/hour]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

90 | 8.1
180 | 16.2
Hydrogen outlet pressure [barg]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

30
Hydrogen production gas purity [vol%]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

>99.998
Water content in hydrogen - with dryer [ppm]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

<5
Oxygen production gas purity - expected [vol%]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

>97.5
Cell stack & power supply consumption [kWh/kg H2]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

57.0
Input connections
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

3 ph 400 +/- 10% 50 Hz
Tap water consumption - expected [l/kg hydrogen]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

33.4
Communication interface
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

Ethernet/Modbus/OPC-UA
Control software
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

HyProManager™
Ambient temperature [°C]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

-20 to 30 (0-100%)/ 30 to 35 (0-75%)
Dry weight of container [t]
A90

The A90 20-foot unit contains 1 process module.

A180

The A180 40-foot unit contains two process modules.

19.1
31.6
Stack at 100% production
Power consumption [kWh/kg hydrogen]
53.0
Efficiency - Higher Heat Value (HHV) [%]
74
Current [A DC]
1800
Power consumption [kWh/kg hydrogen]
53.0
Efficiency - Higher Heat Value (HHV) [%]
74
Current [A DC]
1800
Do you want to know more?

Our team is standing by to assist you

Selected projects
in Europe

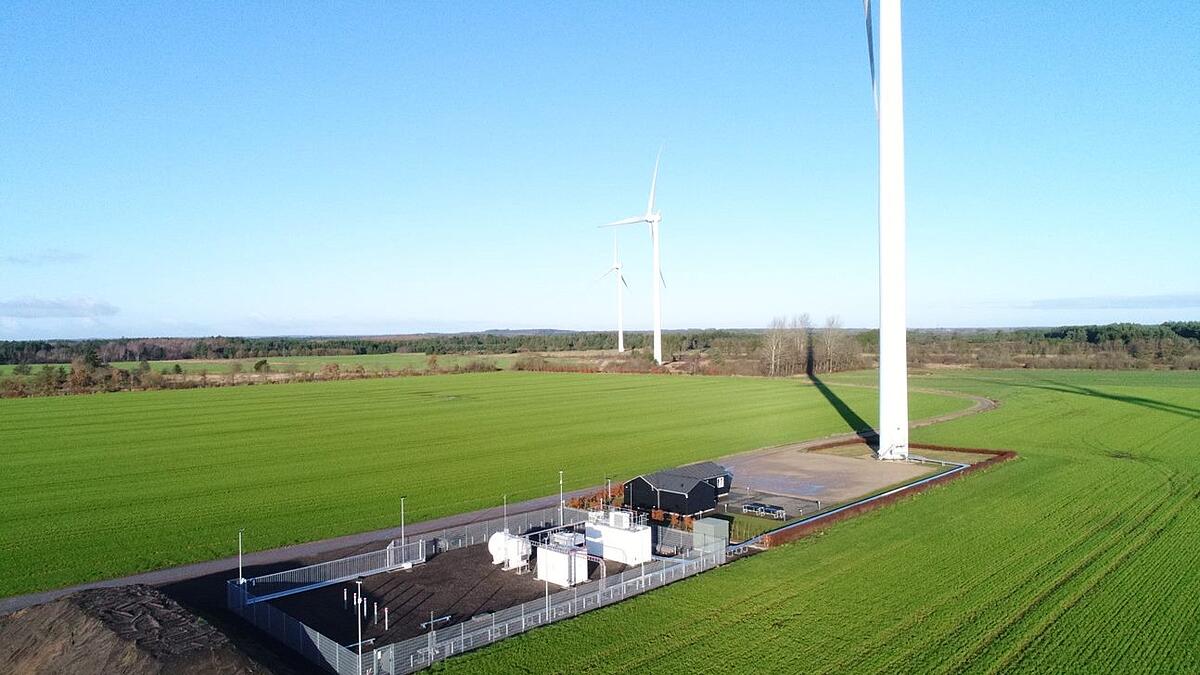

Siemens Gamesa

SIEMENS GAMESA

A HyProvide™ A60 electrolyser for on-site hydrogen generation. Complete turnkey delivery and commissioning by GHS.

Read more
Nilsson Energy-1

NILSSON ENERGY

A HyProvide™ A60 for the production of green hydrogen on-site for a hydrogen refuelling station – powered by solar energy to make 100%...

Read more

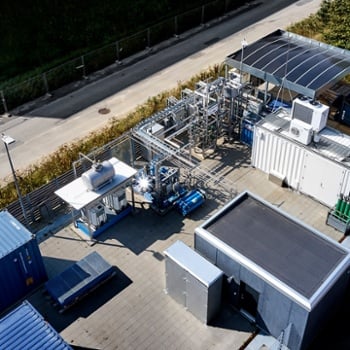

Alliander-2-2

Alliander

3 x A90 HyProvide™ Electrolyser for Ecomunitypark in the Netherlands. To produce hydrogen on-site from excess renewable energy.

Read more

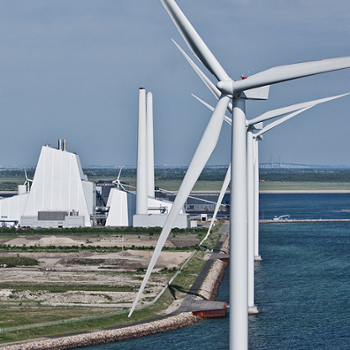

Ørsted-2-1

Ørsted

A plant will be built around five Hyprovide® A90 electrolysers powered by two offshore wind turbines.

Read more

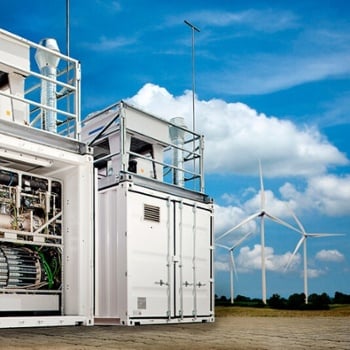

Wenger-1-1
